Automated Hydroblasting Equipment for Bundle Tube Cleaning
Automate your bundle tube cleaning service with our hydroblasting equipment. Maximize speed, reduce labor, and achieve superior cleanliness for heat exchangers!

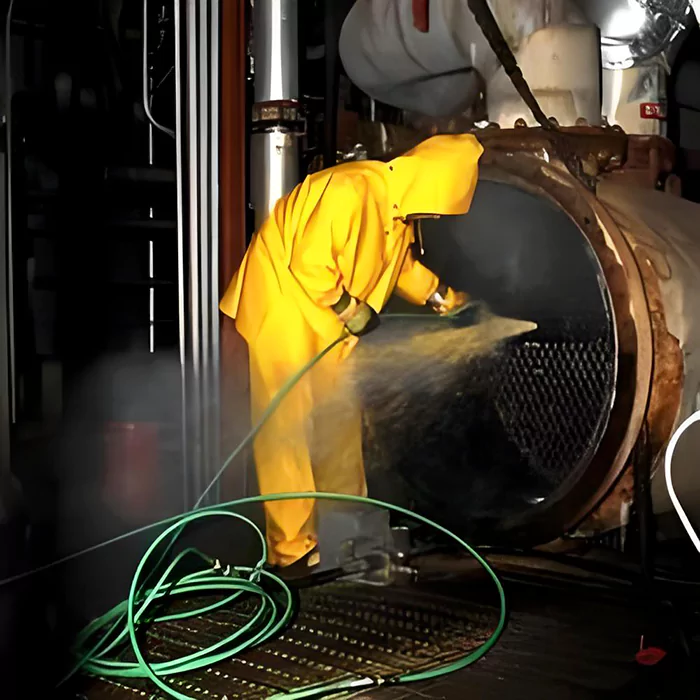

Are you still cleaning Condenser Tube like this?
- Dirty
- Slow
- Not clean
- Not convenient
It's time to change to automated equipment for heat exchanger cleaning!
- Super clean !
- Super fast !
- Labor-save !
- Easy to operate !
Details
Current automatic hydro jetting equipment for tube bundle heat exchanger is very easily to get jammed when the speed is fast. With our upgraded version this problem has been well solved!

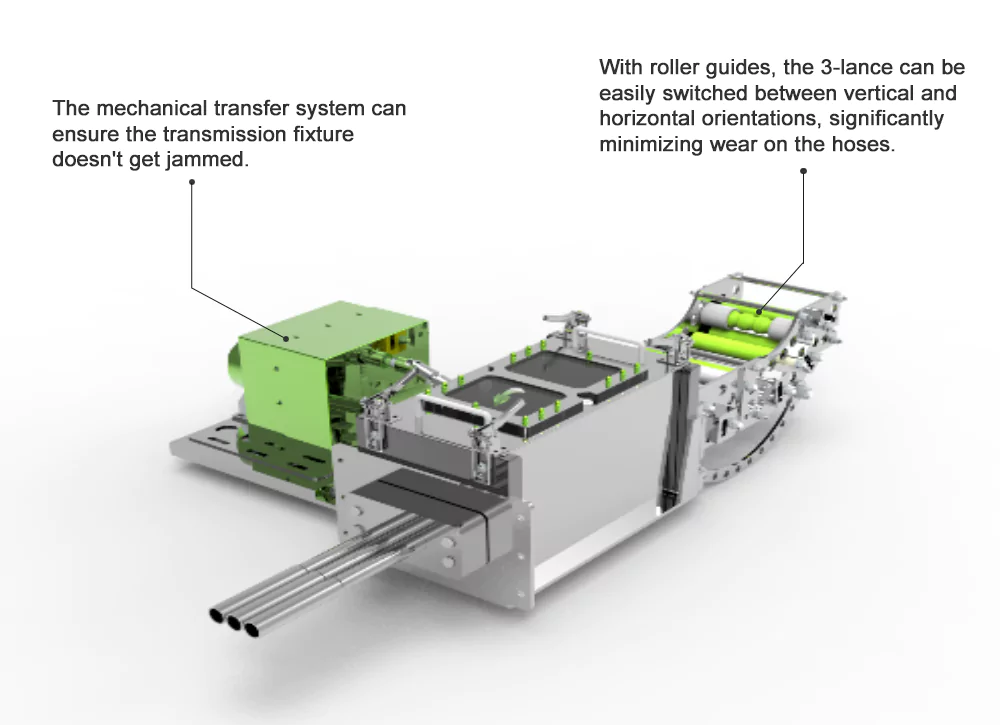

Upgraded mechanical transfer system can ensure the fixture doesn’t get jammed !
We have also added roller guides, so that the lances can be easily switched between vertical and horizontal orientations, singnificantly minimizing weear of the hoses.
Â

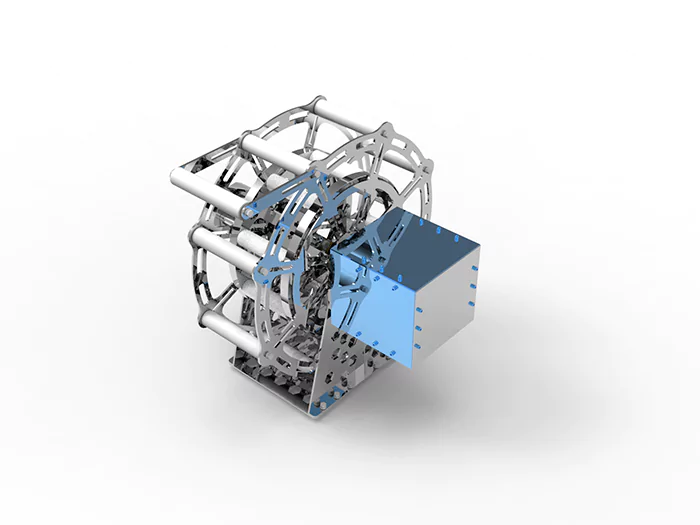

Every time 3 lances go together. And with hose winder to control the speed at 90 meters per minuet. This speed is much faster than labor cleaning!

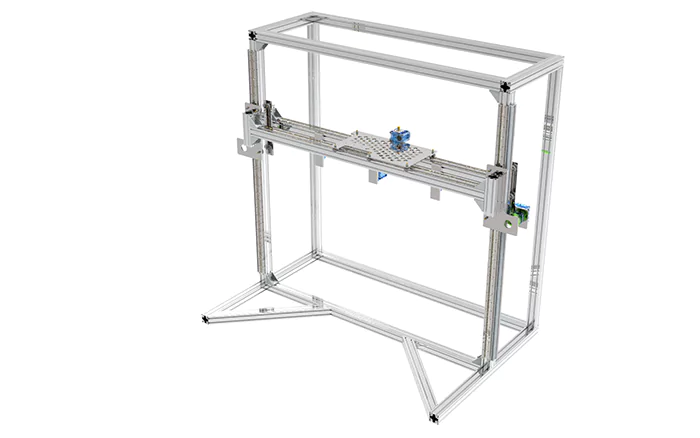

Vertical shelf for automated Hydro Jet Exchanger Cleaning machine with 3 lances.

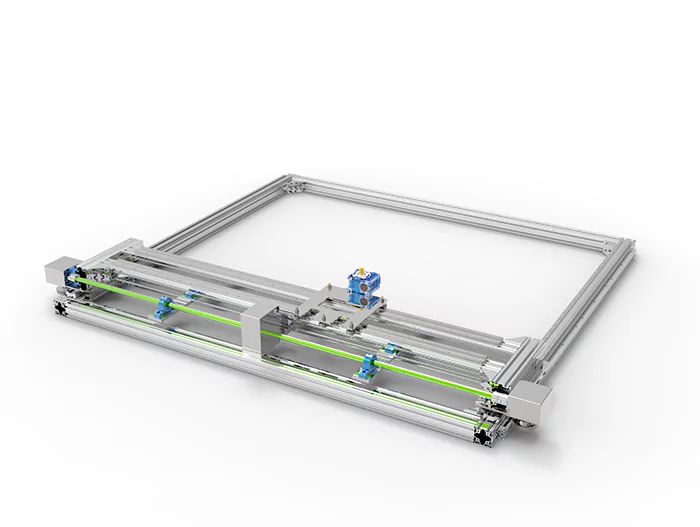

Horizontal shelf for automated Chiller Condenser Tube Cleaning equipment.
Technical Data Sheet
| Project | Unit | Description |
| Maximum Working Pressure | BAR | 2000 |
| Maximum Flow Rate | L/min | 220 |
| Length | mm | 1107 |
| Width | mm | 230 |
| Height | mm | 280 |
| Weight | kg | 45 |
| Reel-in/Reel-out Speed | M/min | 90 |
| Pneumatic Station Power Source | bar | 6~8 |
| Hose Specification (Din6^8) | M | 30 |
how to cooperate?
Consult
Please contact us to get free consult of more details and the most suitable model can be recommended according to your specific demand!
Payment
Full payment is required prior to shipment for all non-customized machines. For custom orders, a 30% deposit is necessary to initiate the customization process.
Design
In case you need cusomized device, our engineer will confirm all your needs and do the design for you, after all details confirmed, we will arrange production.
shipping
We offer worldwide shipping services via sea or air. The majority of shipments are transported by sea, with an estimated arrival time of approximately 60 days.
Training & Working
after you receiving the equipment, we can manage training. Offer better services than your competitors with our advanced automated cleaning system!
